Our Services

Shahat Oil Services is focused on providing quality oriented services to the Libyan Oil industry. Our range of specialized services include:

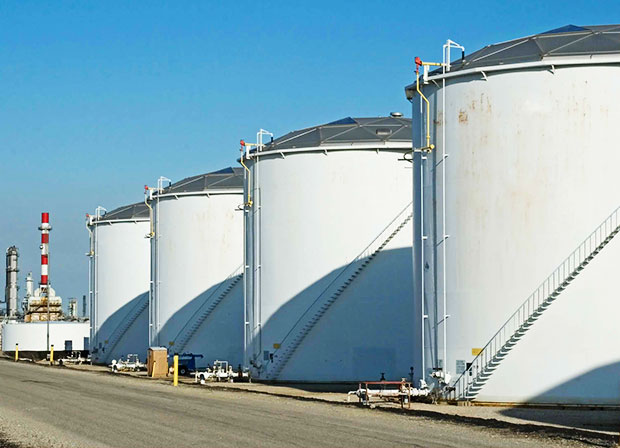

Storage Oil Tanker Cleaning

Storage Oil Tank Cleaning, Inspection & Repairing provide you with Services related to various types of storage Oil tanks in operational Oil / Gas

Read More

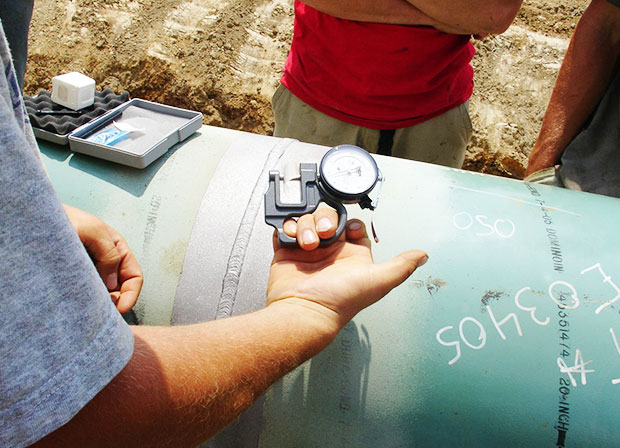

Piping Inspection

The Piping Inspection & leak repairing article provides you with required services about the inspection of piping and piping testing & repairing

Read More

Boiler Inspection

The boiler inspection article provides you with necessary services including inspection / Cleaning & Maintenance of boilers in-service inspection

Read More

Heat Exchanger Inspection

The Heat Exchanger article provides you with necessary services including inspection / Cleaning by using high pressure water nozzle & Maintenance

Read More

Pressure Vessel Inspection

The Pressure Vessel article provides you with necessary services including inspection / Cleaning & Maintenance of Pressure Vessel in-service

Read More

Lifting & Handling Equipment

Lifting & Handling Equipment services include inspection tests for Mobile Cranes, Tower Crane, Crawler Cranes, Hydraulic Truck Mounted, etc

Read More

NDT Services

We are able to provide the clients with all necessary qualified Operators / Inspectors & advanced NDT Equipment in order to carried out the below

Read More

Storage Oil Tanker Cleaning

Piping Inspection

The Piping Inspection & leak repairing article provides you with required services about the inspection of piping and piping testing & repairing / Mechanical cleaning in operational plants, as well as in a construction site.

The required services are related the following items:

• Inspection and Testing During the Construction Phase
• Inspection and Testing During the Operation Phase
• Piping System Codes and Regulations
• Maintenance /Leaking Repairs & Pipes Cleaning for survey

Piping services article, alongside the other linked articles are useful for Construction Contractors Quality Control Personnel, Second and Third Party Inspectors, Purchasers, Sellers, Plant Inspectors, HSE Engineers, Integrity Engineers, Operation and Maintenance Engineers, and any Other Interested Individuals.

The title of the code is Piping Inspection Code: In-service Inspection, Rating, Repair, and Alteration of Piping Systems.

• Creating a piping inventory list indicating the line number, pipe specification class, rating, schedule, pipe origin location (from) and pipe destination location (to)
• Selecting appropriate NDT techniques for each piping circuit based on the circuit damage mechanism or during Operation (Leaking location & Repairing procedures)
• Determination of piping service class based consequence of failure and instruction stated in API 570 or based on the Risk Based Inspection method.
• Carry out external inspection for corrosion, leaks, previous temporary repairs, clamps, coating breakdown, insulation damage, vibration, misalignment, pipe support deterioration specifically in touch points and to air to soil interface, pipe hanger distortion or breakage and frizz damage
• External thickness measurement on CMLs on each piping circuit
• Corrosion rate calculation based on metal loss in a specific time interval
• Retirement thickness calculation based on the minimum required thickness and minimum required structural thickness
• Remaining life calculation based on the available thickness for corrosion and the corrosion rate value
• Determination of piping circuit inspection interval based remaining life calculation and piping service class
• Determination of piping inspection interval for non-thinning damage mechanism
• Making supplementary inspection with the proper NDE method for piping circuits susceptible to creep cracking
• Making supplementary inspection with the proper NDE method for piping circuits susceptible to the creep cracking

Application of other NDE methods if it is necessary:

• MT (magnetic particle), WFMT (wet fluorescent magnetic particle), PT (penetrate testing), EC (eddy current), UT shear wave, AUT (automated UT), TOFD (time of flight diffraction), RT, ACFM (alternating current field measurement), AET (acoustic emission) for investigating cracking
• Internal inspection in opened flanges for deposition, corrosion, localized corrosion, erosion, etc.
• Internal inspection of clad or lined piping for disbanding, bulging and cracking
• Internal inspection of refractory lined piping for erosion, deterioration of anchors, undercutting of refractory and coke build up behind refractory
• Flange joint inspection for distortion and leakage and flange face inspection, ring groove and gasket for corrosion, erosion, cracking and mechanical damage
• Internal inspection of dismantled valve for corrosion, erosion, mechanical damage and cracking
• Specific attention and internal inspection of critical check valves
• Inspection of injection points for localized corrosion
• Inspection of dead legs for corrosion
• Making appropriate reporting and report keeping and implement proper system for quick access to the records

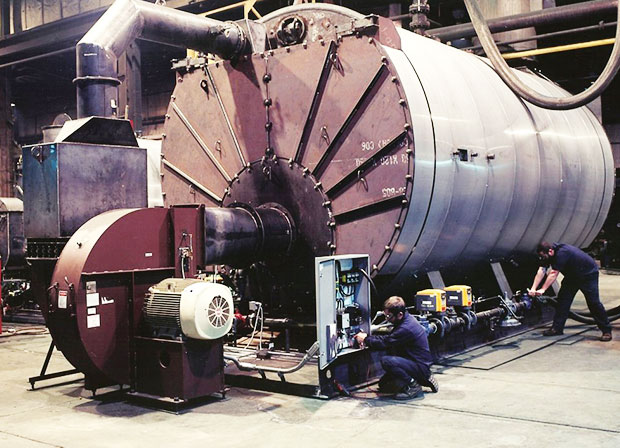

Boiler Inspection

The boiler inspection article provides you with necessary services including inspection / Cleaning & Maintenance of boilers in-service inspection in operational plants for both types :

• Fire Boiler type.
• Water tube steam boiler.

Providing you lots of required services:

• Inspection and Testing During the Operation Phase
• Steam Boiler Codes and Regulations
• Maintenance and Repairs

The boiler Inspection article, alongside the other linked articles, are useful for Quality Control Personnel, Second and Third Party Inspectors, Plant Inspectors, HSE Engineers, Integrity Engineers, Operation and Maintenance Engineers and any Other Interested Individuals.

• We can inspect all Internal Sections & Tubes of Water Tube Boiler including Burners / Soot Blowers
• Also we can inspect External Parts /Stack & Steam / water Drum / Silencer

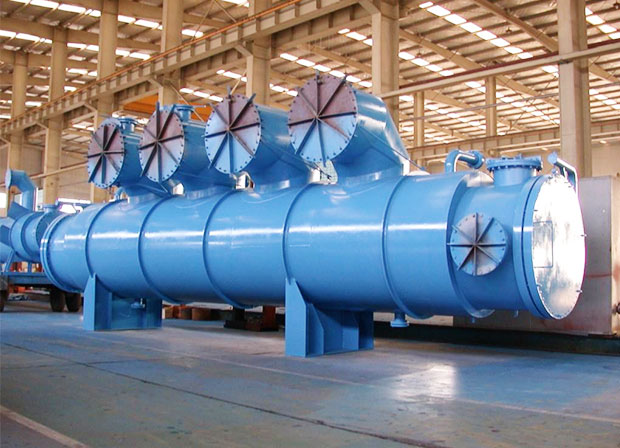

Heat Exchanger Inspection

The Heat Exchanger article provides you with necessary services including inspection / Cleaning by using high pressure water nozzle & Maintenance of Heat Exchanger in-service inspection in operational plants for both types

• Shell and Tube Heat Exchangers
• Plate Heat exchangers

Providing you lots of required services:

• Inspection and Testing During the Operation Phase
• Heat Exchangers Codes and Regulations
• Maintenance and Repairs

The Heat Exchanger Inspection article, alongside the other linked articles, are useful for Quality Control Personnel, Second and Third Party Inspectors, Plant Inspectors, HSE Engineers, Integrity Engineers, Operation and Maintenance Engineers and any Other Interested Individuals.

We can inspect two heads, Shell & Tubes (Bundles) of Shell and Tube Heat Exchangers

Also we can inspect Plates of Plate Heat exchange

• Thickness measurement and making corrosion rate and remaining life calculation

Tube Bundle:

• Taking care in the pulling out of tube bundle to avoid any mechanical damage
• Sampling from tube side fouling and corrosion products and making lab analysis and making interpretation by corrosion engineer (if necessary)
• Controlling of water jetting or lancing cleaning process
• Controlling wire brushing process of inner tube edge and rolling area (preparation for ID measurement)
• Inside diameter measurement in tubes and tubes rolling areas
• Rate off and accordingly plugging the tubes when their OD reaches to the ID plus one thickness
• Re-tubing of tube bundle if more than 10% of tubes reach the above rejection limit
• Inspection from tube bundle components such as tube's sheet, tube, tie rods and spacers, transfer baffles or support plate, impingement baffle, floating head flange and floating head backing device
• Inspection from internal surface of tubes for corrosion and fouling
• Pulling out a sample tube for sectioning and corrosion analysis if necessary
• Re-tubing when sectioning result proves the thickness is half of the nominal value
• Visual inspection and dye penetration test from tube to tube's sheet seal or strength weld
• Eddy current testing if it is necessary

Channel in Heat Exchanger Inspection:

• Thickness measurement and making corrosion rate and remaining life calculation
• Inspection of gasket seating area, pass partition and nubbing for corrosion and deformation
• Inspection of internal surface for fouling, corrosion and soundness of linings (if any)
• Balance hole inspection for corrosion and erosion
• Welding joints inspection for any possible cracks
• Reinforcement pad inspection and doing soap test if necessary
• Cathodic protection anodes inspection and replacement if necessary
• Diaphragm and division box visual inspection and dye penetration test of diaphragm for any possible cracks (for high pressure exchangers)

Expansion Joint Inspection:

The heat exchangers with expansion joints need to be inspected to maintain their reliability for:

• Flange inspections for corrosion and erosion
• Inspection from internal surface for corrosion and erosion
• Air test

The tube and shell hydrostatic test need to be done after the above stated inspection activities.

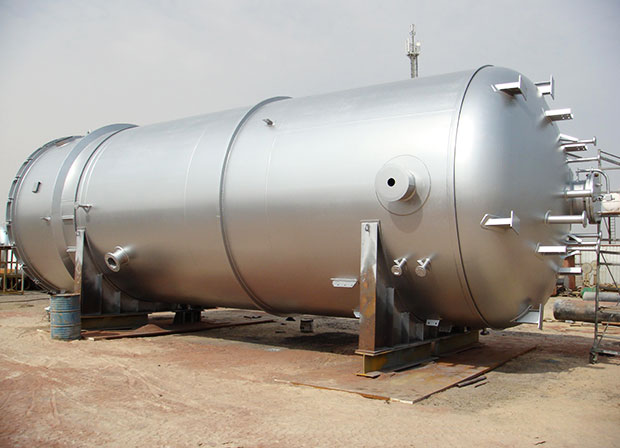

Pressure Vessel Inspection

The Pressure Vessel article provides you with necessary services including inspection / Cleaning & Maintenance of Pressure Vessel in-service inspection in operational plants for both types providing you lots of required services:

• Inspection and Testing During the Operation Phase
• Pressure Vessel Codes and Regulations
• Maintenance and Repairs

The Pressure Vessel Inspection article, alongside the other linked articles, are useful for Quality Control Personnel, Second and Third Party Inspectors, Plant Inspectors, HSE Engineers, Integrity Engineers, Operation and Maintenance Engineers and any Other Interested Individuals.

• We can inspect, Shell part & Nozzles, Plates /Pipes & Heads.
• Thickness measurement and making corrosion rate and remaining life calculation

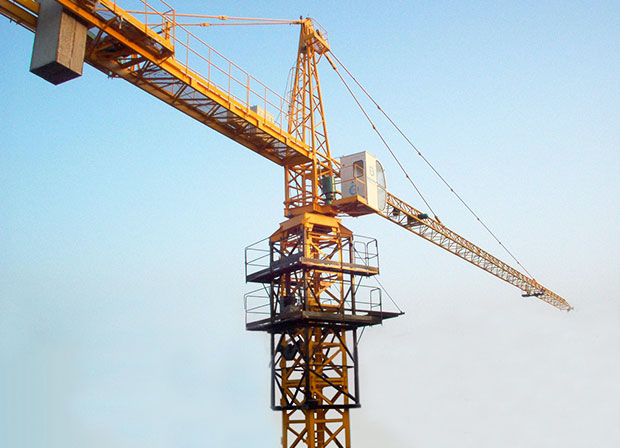

Lifting & Handling Equipment

• Mobile Cranes
• Tower Crane
• Crawler Cranes
• Hydraulic Truck Mounted Cranes
• Maritime Cranes.
• Hydraulic Excavators
• Various Forklift Truck
• Container Handling Equipment
• Access Platform & Telescopic Handlers

Note:The required Sparer parts will provided by clients

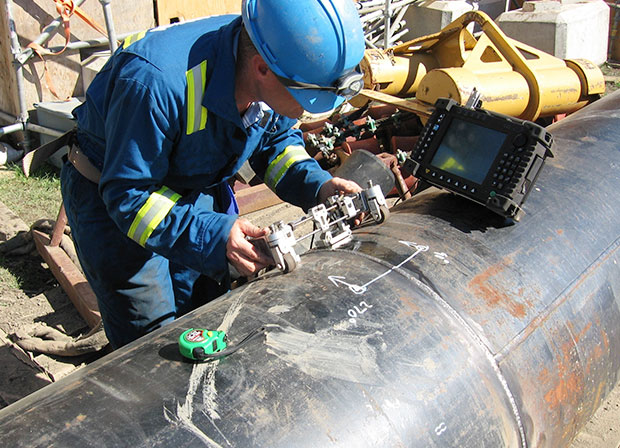

Non destructive Testing (NDT)

We are able to provide the clients with all necessary qualified Operators / Inspectors & advanced NDT Equipment in order to carried out the below required testing services according to established International Standards & applicable local / international safety procedures:

• Radiographic Testing
• Ultrasonic Testing
• Magnetic Particle Testing
• Dye Penetrate Testing
• Eddy Current Testing
• Hardness checks on welding & Materials
• Visual Inspection

The above NDT are to cover but not limited, the following industrial Equipment at End users location (Onshore / Offshore Oil / Gas Fields):

• Pipes & Fittings
• Heat Exchangers
• Pressure Vessels
• Oil Storage Tanks
• Boilers
• Steel Structures

In addition to that we are able to carried out the following:

• Welding Procedure Specification (WPS)
• Welding Procedure Qualification Record (WPQR)
• Welding Performance Qualification Test (WPQ)

International Standards will control the above-mentioned test.

After testing complete compressive Report will be prepared including recommendation, confirming that Shahat Oil Services is committed to High level of Health & safety Practices (HSP)

Our Policies

Lorem ipsum dolor sit amet, consectetur adipisicing elit. Quod quae voluptas esse natus officiis doloribus!

Quality Policy

• The spirit of Quality actively involves the whole organization of Company and is the key to our success.
• Company will evaluate and approve by major certification bodies for an Integrated Management System.
• The Quality Manual Stipulates guidelines, procedures and instructions for complete monitoring and control at all levels, to ensure highest quality standard audited and re‐certified as per rules.
• We will establish the system complies fully with the requirements of ISO 9001 and regularly audited and re‐certified as per rules.
• Company's Quality Control Department is responsible for all aspects of quality from this ensure that all Services / equipment and consumable material conform to the International Standards and requirements of the Customers.

Health & Safety

• Company has a strict cultural of safety first.
• A safe working environment and accident free record within our services sites facilities is testament to all staff's commitment towards Occupational Health & Safety.
